型号传感器图片应用系统外观尺寸测量尺寸点密度量程点数量说明报告

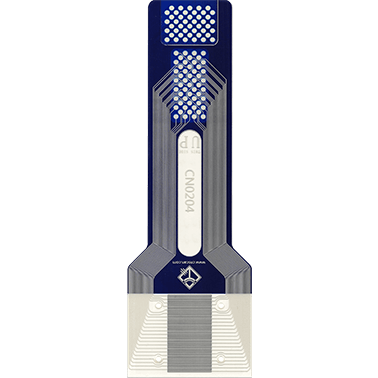

CN0204CN0204-2G-Scan System212*70 (mm)
8*3 (in)		24*43 (mm)
1*2 (in)		100 /cm²
658 /in²		4137 (kpa)
600 (psi)		1144下载
CN0204-2YCN0204-2Y-1G-Scan System560*110 (mm)
22*4 (in)		27*43*2 (mm)
1*2*2 (in)		24 /cm²
145 /in²		689 (kpa)
100 (psi)		1000下载

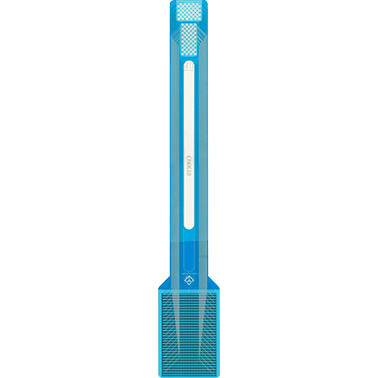

CN0610CN0610-1G-Scan System460*76 (mm)
18*3 (in)		66*100 (mm)
3*4 (in)		9 /cm²
59 /in²		3447 (kpa)
500 (psi)		640下载

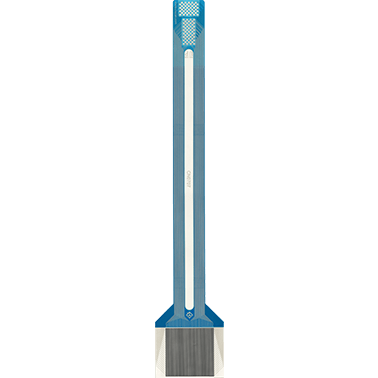

CN0707CN0707-1G-Scan System560*102 (mm)
22*4 (in)		70*70 (mm)
3*3 (in)		45 /cm²
289 /in²		1034 (kpa)
150 (psi)		2288下载

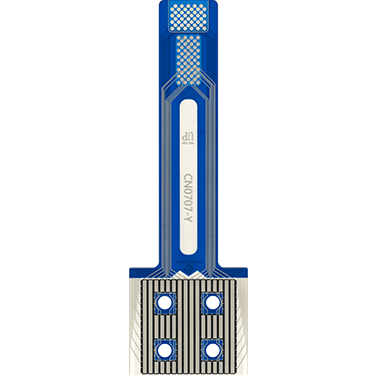

CN0707-YCN0707-Y-1G-Scan System300*94 (mm)
12*4 (in)		74*74 (mm)
3*3 (in)		5 /cm²
30.5 /in²		2758 (kpa)
400 (psi)		256下载

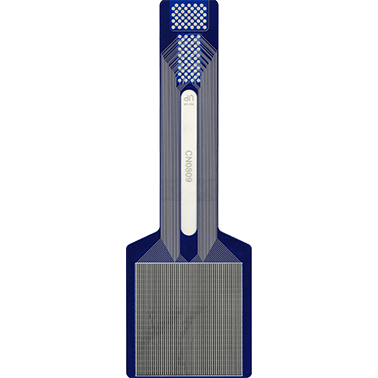

CN0809CN0809-1G-Scan System308*102(mm)
12*4 (in)		85*90 (mm)
3*4 (in)		14 /cm²
93 /in²		2413 (kpa)
350 (psi)		1144下载

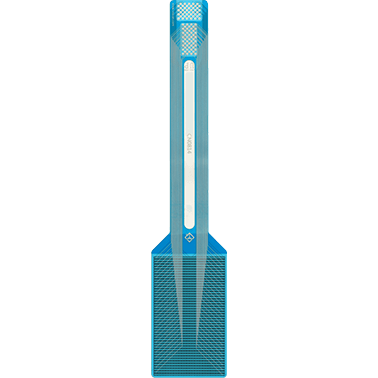

CN0814CN0814-1G-Scan System460*93(mm)
18*4 (in)		86*144 (mm)
3*6 (in)		10 /cm²
67 /in²		3447 (kpa)
500 (psi)		1296下载
CN0905CN0905-1G-Scan System800*120 (mm)
32*5 (in)		96*50 (mm)
4*2 (in)		21 /cm²
135 /in²		4137 (kpa)
600 (psi)		1000下载

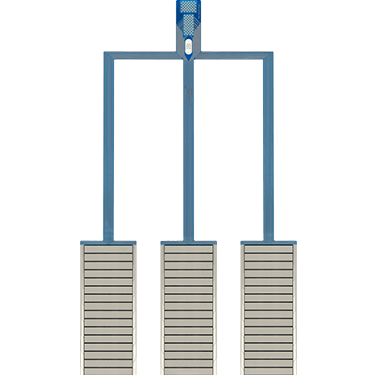

CN0924-YCN0924-Y-1G-Scan System712*406 (mm)
28*16 (in)		90*244 (mm)
4*10 (in)		0.9 /cm²
5.6 /in²		3448 (kpa)
500 (psi)		576下载

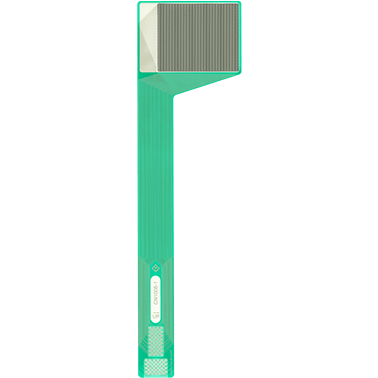

CN1008CN1008-1G-Scan System500*137 (mm)
20*5 (in)		104*88 (mm)
4*3 (in)		25 /cm²
160 /in²		3448 (kpa)
500 (psi)		2288下载

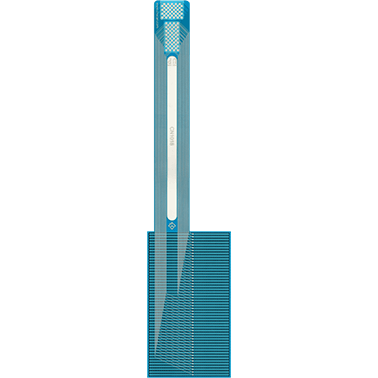

CN1018CN1018-1G-Scan System500*111 (mm)
20*4 (in)		105*188 (mm)
4*7 (in)		11 /cm²
73 /in²		3447 (kpa)
500 (psi)		2288下载

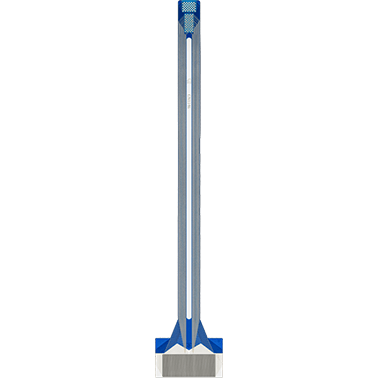

CN1146CN1146-1G-Scan System800*143 (mm)
32*6 (in)		111*46 (mm)
4*2 (in)		43 /cm²
298 /in²		5516 (kpa)
800 (psi)		2288下载

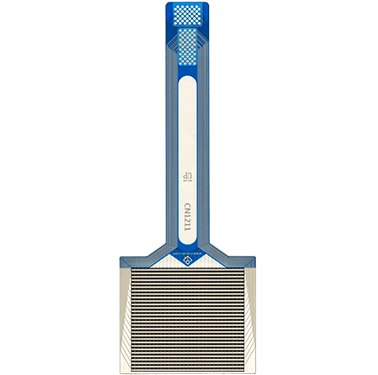

CN1211CN1211-1G-Scan System400*146 (mm)
16*6 (in)		120*110 (mm)
5*4 (in)		7 /cm²
42 /in²		3448 (kpa)
500 (psi)
------------
1035(kpa)
150 (psi)
------------
345 (kpa)
50 (psi)
900下载下载

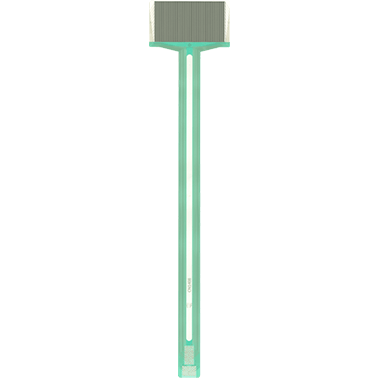

CN1408CN1408-1G-Scan System800*172 (mm)
32*7 (in)		148*85 (mm)
9*3 (in)		8 /cm²
50 /in²		4137 (kpa)
600 (psi)
------------
1035(kpa)
150 (psi)
------------
345 (kpa)
50 (psi)
1000下载

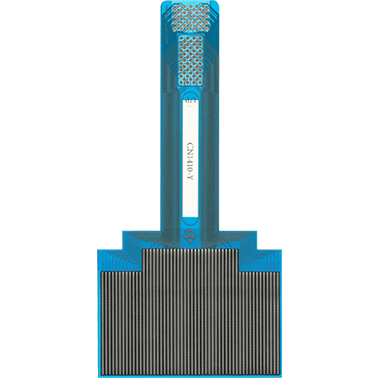

CN1410-YCN1410-Y-1G-Scan System303*149 (mm)
12*6 (in)		143*100 (mm)
6*4 (in)		16 /cm²
101 /in²		3447 (kpa)
500 (psi)
2096下载

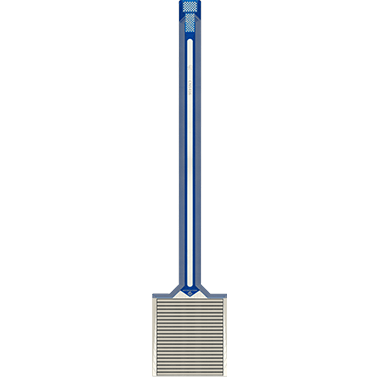

CN1416CN1416-1G-Scan System800*160 (mm)
32*6 (in)		140*162 (mm)
6*6 (in)		4 /cm²
27 /in²		4137 (kpa)
600 (psi)		968下载下载

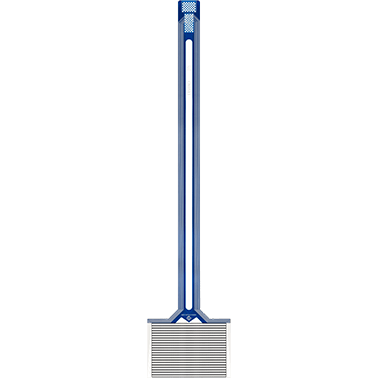

CN1511CN1511-1G-Scan System800*177 (mm)
32*7 (in)		157*113 (mm)
6*4 (in)		7 /cm²
31 /in²		4137 (kpa)
600 (psi)		880下载下载

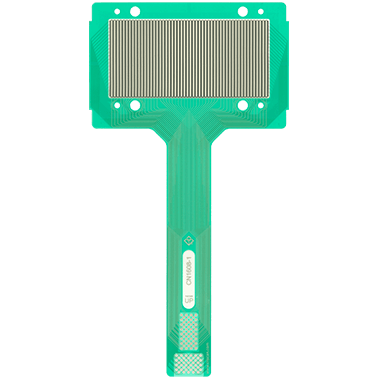

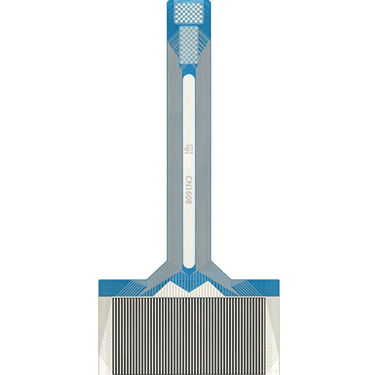

CN1608CN1608-1G-Scan System400*192 (mm)
32*7 (in)		160*80 (mm)
6*3 (in)		17 /cm²
109 /in²		1724 (kpa)
250 (psi)		2288下载

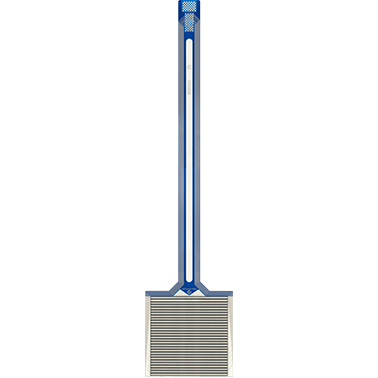

CN1616CN1616-1G-Scan System800*186 (mm)
32*7 (in)		162*167 (mm)
6*7 (in)		4 /cm²
28 /in²		4137 (kpa)
600 (psi)		1200下载下载

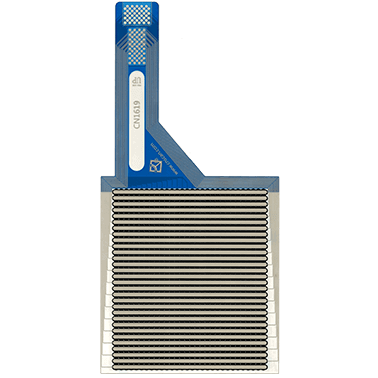

CN1619CN1619-1G-Scan System400*192 (mm)
16*8 (in)		162*192 (mm)
6*8 (in)		3 /cm²
18 /in²		3448 (kpa)
500 (psi)		900下载下载

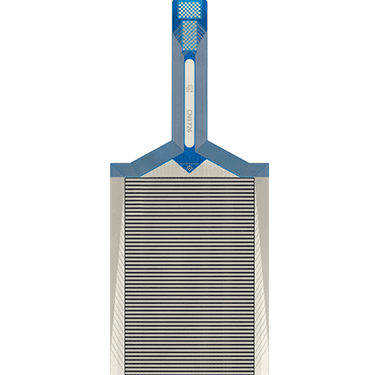

CN1726CN1726-1G-Scan System500*210 (mm)
20*8 (in)		170*260 (mm)
7*10 (in)		4 /cm²
26 /in²		1034 (kpa)
150 (psi)		1768下载

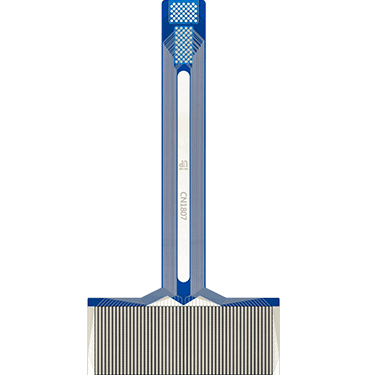

CN1807CN1807-1G-Scan System400*204 (mm)
16*8 (in)		188*72 (mm)
7*3 (in)		10 /cm²
71 /in²		3448 (kpa)
500 (psi)		1400下载

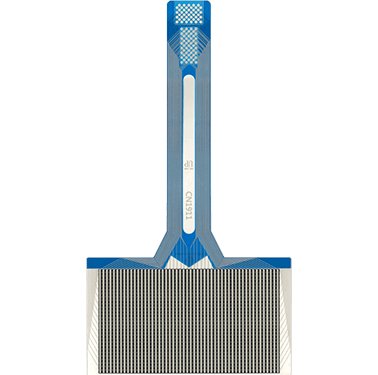

CN1911CN1911-1G-Scan System400*218 (mm)
16*9 (in)		192*110 (mm)
8*4 (in)		7 /cm²
46 /in²		3448 (kpa)
500 (psi)		1560下载下载

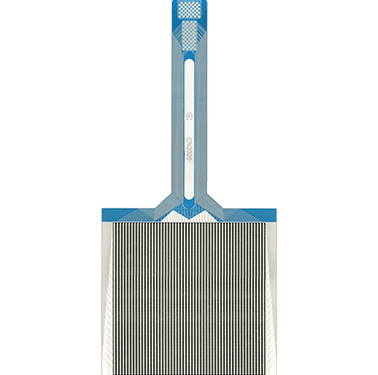

CN2020CN2020-1G-Scan System500*232 (mm)
20*9 (in)		200*200 (mm)
8*8 (in)		6 /cm²
36 /in²		1724 (kpa)
250 (psi)		2288下载
CN2020-YCN2020-Y-1G-Scan System440*240 (mm)
17*9 (in)		200*200 (mm)
8*8 (in)		5 /cm²
31 /in²		689 (kpa)
100 (psi)		1034下载
CN2109CN2109-1G-Scan System600*220 (mm)
24*9 (in)		210*93 (mm)
8*4 (in)		0.7 /cm²
4 /in²		3448 (kpa)
500 (psi)		130下载

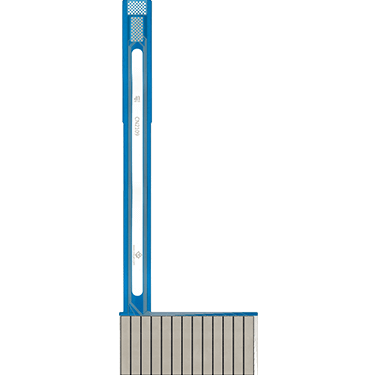

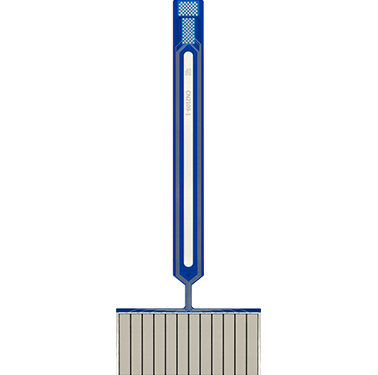

CN2109-1CN2109-1-1G-Scan System573*220 (mm)
21*9 (in)		210*93 (mm)
8*4 (in)		0.7 /cm²
5 /in²		3448 (kpa)
500 (psi)		144下载

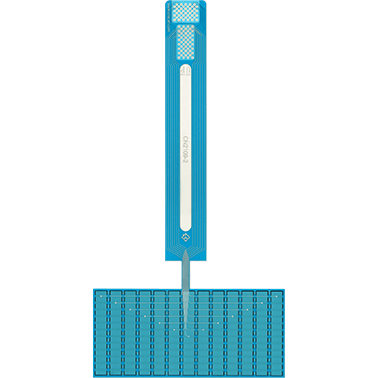

CN2109-2CN2109-2-1G-Scan System434*220 (mm)
17*9 (in)		214*96 (mm)
8*4 (in)		0.8 /cm²
5 /in²		3447 (kpa)
500 (psi)		169下载

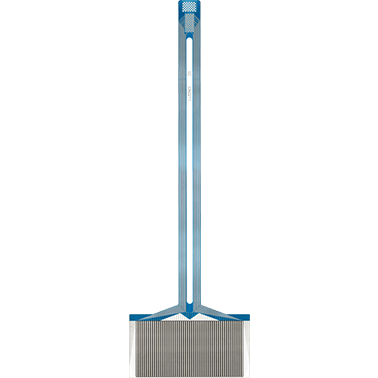

CN2211CN2211-1G-Scan System800*255 (mm)
32*10 (in)		225*117 (mm)
9*5 (in)		8 /cm²
55 /in²		1034 (kpa)
150 (psi)		2288下载

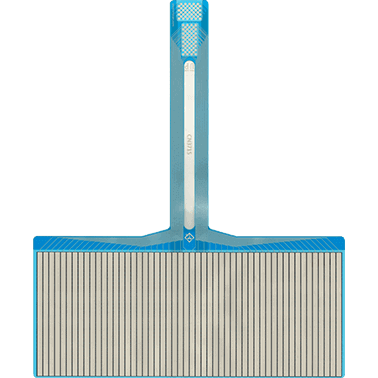

CN3715CN3715-1G-Scan System460*380(mm)
18*15 (in)		370*150 (mm)
15*6 (in)		3 /cm²
18 /in²		3447 (kpa)
500 (psi)		1560下载

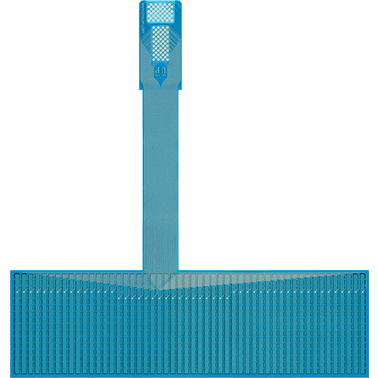

CN3811CN3811-1G-Scan System420*399 (mm)
17*16 (in)		389*110 (mm)
15*4 (in)		2 /cm²
12 /in²		3447 (kpa)
500 (psi)		832下载

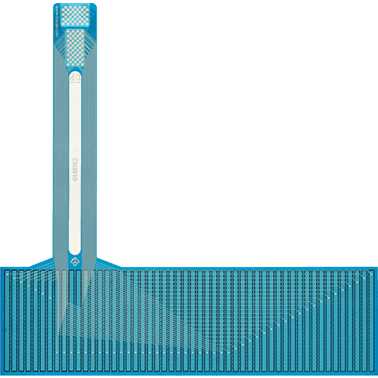

CN3910CN3910-1G-Scan System400*405 (mm)
16*16 (in)		395*107 (mm)
16*4 (in)		3/cm²
20 /in²		3447 (kpa)
500 (psi)		1352下载

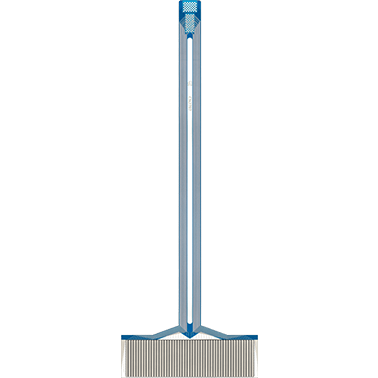

CN2707CN2707-1G-Scan System800*290 (mm)
32*11 (in)		270*77 (mm)
11*3 (in)		7 /cm²
46 /in²		3448 (kpa)
500 (psi)		1500下载

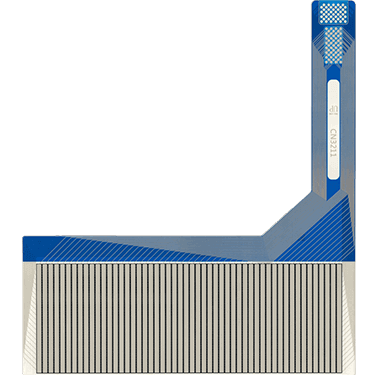

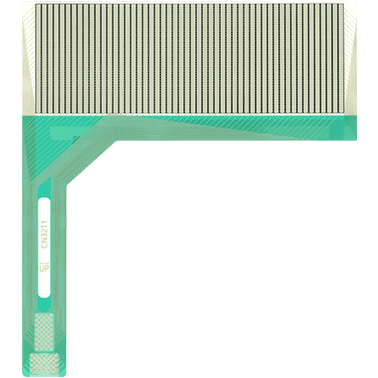

CN3211CN3211-1G-Scan System402*356 (mm)
16*14 (in)		326*116 (mm)
13*5 (in)		6 /cm²
38 /in²		3448 (kpa)
500 (psi)		2288下载下载

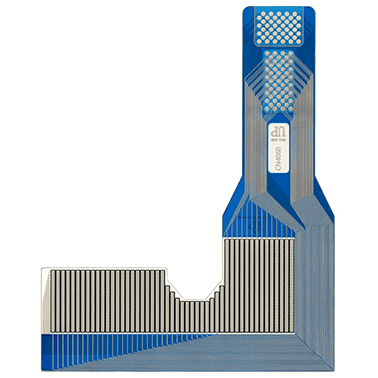

CN4060CN4060-1G-Scan System235*189 (mm)
9*7 (in)		157*60 (mm)
6*2 (in)		16 /cm²
101 /in²		690 (kpa)
100 (psi)		1018下载下载

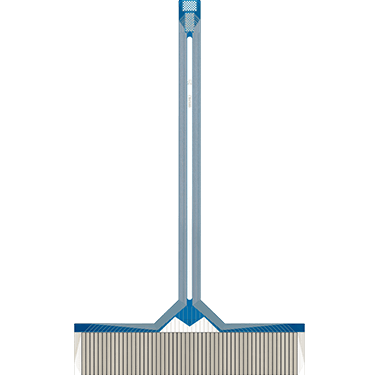

CN4590CN4590-1G-Scan System800*488 (mm)
32*19 (in)		456*90 (mm)
18*4 (in)		5 /cm²
35 /in²		5516 (kpa)
800 (psi)		2288下载

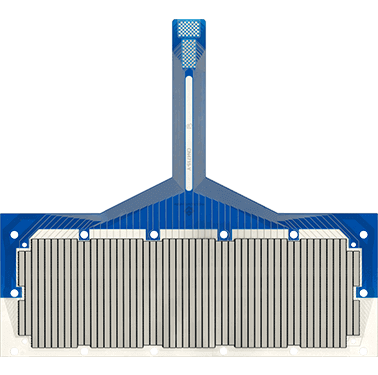

CN4715-YCN4715-Y-1G-Scan System470*526 (mm)
19*21 (in)		475*151 (mm)
19*6 (in)		3 /cm²
21 /in²		3448 (kpa)
500 (psi)		2288下载
CN5027CN5027-1G-Scan System508*55 (mm)
20*2 (in)		28*28 (mm)
1*1 (in)		156 /cm²
1012 /in²		345-3448 (kpa)
50-500 (psi)		1225下载

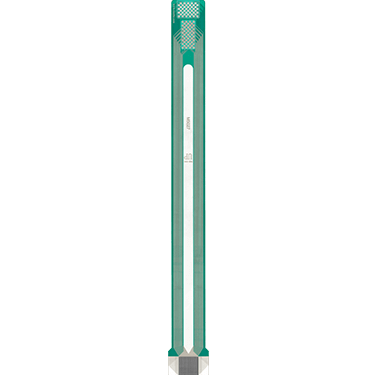

M5027M5027-1G-Scan System520*56 (mm)
20*2 (in)		26.6*26.6 (mm)
1*1 (in)		278 /cm²
1736 /in²		689 (kpa)
100 (psi)		1936下载

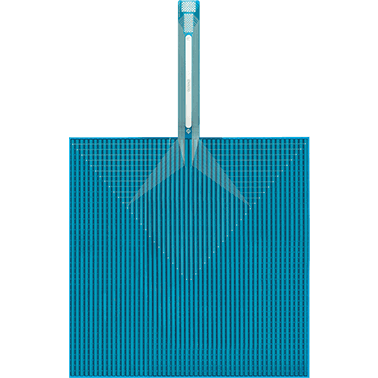

CN5050CN5050-1G-Scan System800*510(mm)
32*20 (in)		500*500 (mm)
20*20 (in)		0.9 /cm²
6 /in²		6895 (kpa)
1000 (psi)		2288下载

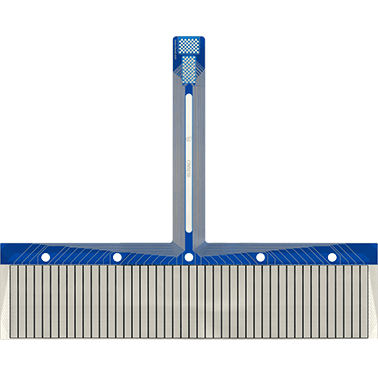

CN5210CN5210-1G-Scan System440*105 (mm)
17*4 (in)		520*105 (mm)
20*4 (in)		3 /cm²
21 /in²		3448 (kpa)
500 (psi)		1760下载

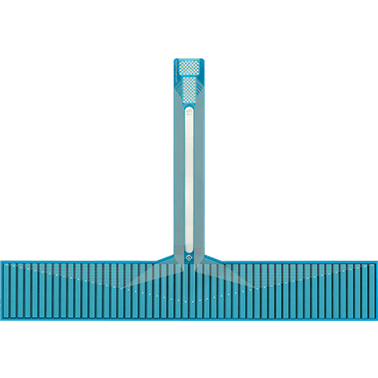

CN5608CN5608-1G-Scan System400*574 (mm)
16*23 (in)		564*82 (mm)
22*3 (in)		4 /cm²
25 /in²		3447 (kpa)
500 (psi)		1924下载

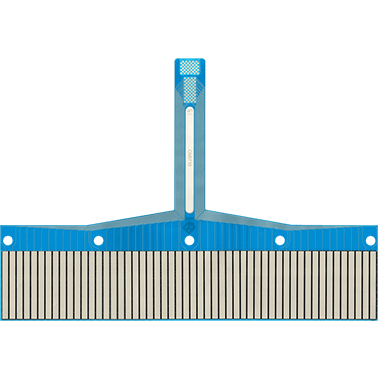

CN5710CN5710-1G-Scan System400*576 (mm)
16*23 (in)		569*102 (mm)
22*4 (in)		0.9 /cm²
6 /in²		3447 (kpa)
500 (psi)		520下载

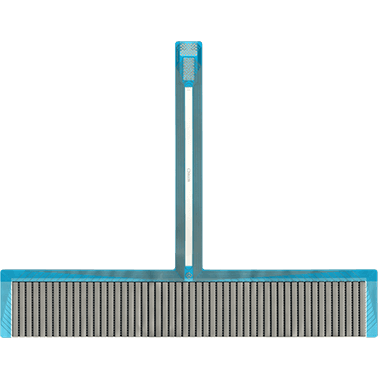

CN6109CN6109-1G-Scan System520*661 (mm)
20*26 (in)		616*95 (mm)
24*4 (in)		1.9 /cm²
13.5/in²		2413 (kpa)
350 (psi)		1144下载

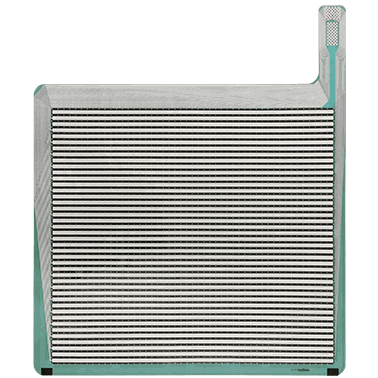

CN5315-TCN5315-T-1BPM System622*545 (mm)
26*21 (in)		492*430 (mm)
19*17 (in)		1 /cm²
6 /in²		41-207 (kpa)
6-30 (psi)		2016下载

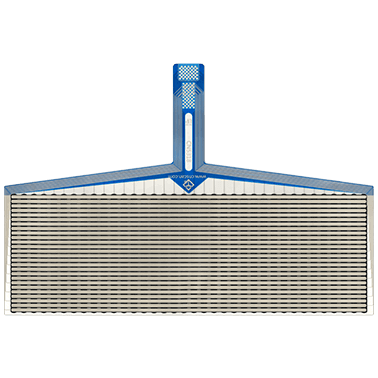

CN5318CN5318-1G-Scan System428*554 (mm)
17*22 (in)		530*175 (mm)
21*7 (in)		1 /cm²
6 /in²		2413 (kpa)
350 (psi)		936下载下载

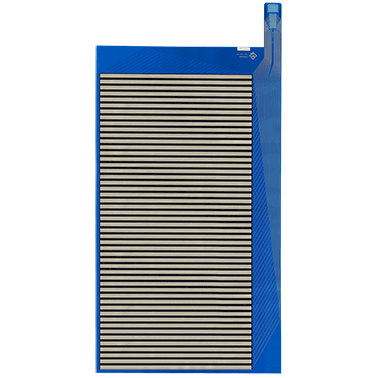

CN5400-NCN5400N-1BPM System1000*500 (mm)
39*20 (in)		410*794 (mm)
16*31 (in)		0.4 /cm²
2.5 /in²		138 (kpa)
20 (psi)		1300下载

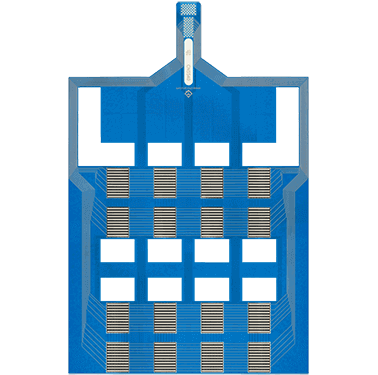

CN5540CN5540-1G-Scan System710*460 (mm)
28*18 (in)		40*16 x 55*16 (mm)
2*16 x 2*16 (in)		4 /cm²
23 /in²		2413 (kpa)
350 (psi)		1408下载下载
CN6300G-Scan System222*315 (mm)
9*12 (in)		264*34 (mm)
10*1 (in)		13 /cm²
97 /in²		69-5516 (kpa)
10-800 (psi)		1144下载

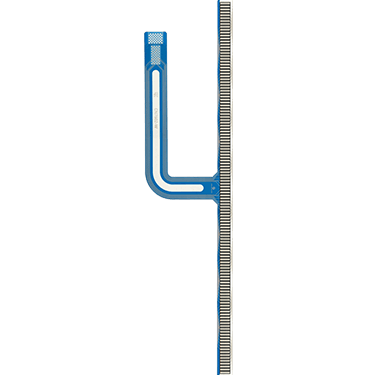

CN7602-WCN7602-W-1G-Scan System780*182 (mm)
31*7 (in)		766*20 (mm)
30*1 (in)		1.7 /cm
4.2 /in		69 (kpa)
10 (psi)		128下载
CN0107-2YCN0107-2YG-Scan 391*65 (mm)
16*3 (in)		26*70 (mm)
1*3 (in)		61.7/cm²
393.1/in²		2758 (kpa)
400 (psi)		2288下载
CN0202-1CN0202-1G-Scan 530*48 (mm)
21*2 (in)		20*25 (mm)
1*1 (in)		158.7/cm²
1020.4/in²		3447 (kpa)
500 (psi)		784下载
CN0507CN0507G-Scan 400*60 (mm)
16*3 (in)		54*75 (mm)
2*3 (in)		29.2/cm²
190.5/in²		345 (kpa)
50 (psi)		1200下载
CN0924CN0924G-Scan 400*103 (mm)
16*4 (in)		97*241 (mm)
4*10 (in)		9.7/cm²
62.1/in²		3447 (kpa)
500 (psi)		2288下载
CN0926CN0926G-Scan 480*102 (mm)
19*4 (in)		96*265 (mm)
4*10 (in)		8.9/cm²
57.2/in²		3447 (kpa)
500 (psi)		2288下载
CN0930CN0930G-Scan 800*103 (mm)
32*4 (in)		97*300 (mm)
4*12 (in)		7.8/cm²
50.4/in²		3447 (kpa)
500 (psi)		2288下载

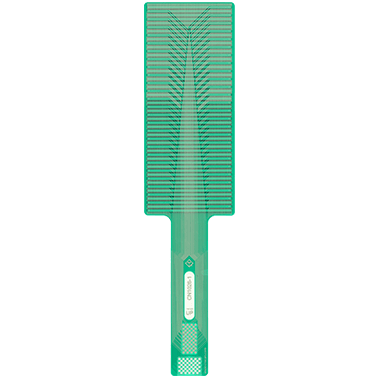

CN1026CN1026G-Scan 480*112 (mm)
19*5 (in)		106*265 (mm)
4*11 (in)		8.2/cm²
53.2/in²		3447 (kpa)
500 (psi)		2288下载
CN1308CN1308G-Scan 400*141 (mm)
16*6 (in)		135*89 (mm)
5*4 (in)		18.3/cm²
118.1/in²		3447 (kpa)
500 (psi)		2288下载

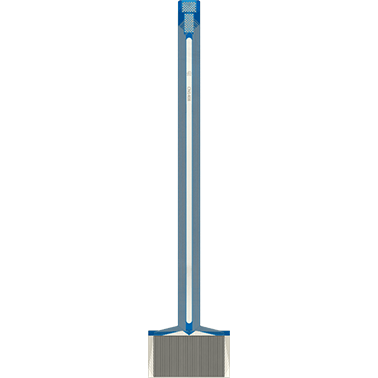

CN1408-1CN1408-1G-Scan 400*148 (mm)
16*6 (in)		152*139 (mm)
6*6 (in)		6/cm²
38.6/in²		3447 (kpa)
500 (psi)		720下载
CN1409CN1409G-Scan 400*148 (mm)
16*6 (in)		142*96 (mm)
6*4 (in)		16.2/cm²
104.5/in²		3447 (kpa)
500 (psi)		2288下载
CN1915CN1915G-Scan 400*200 (mm)
16*8 (in)		194*156 (mm)
8*6 (in)		3.3/cm²
21.6/in²		3447 (kpa)
500 (psi)		1040下载
CN2015CN2015G-Scan 400*209 (mm)
16*8 (in)		203*150 (mm)
8*6 (in)		7.3/cm²
47.1/in²		3447 (kpa)
500 (psi)		2288下载
CN2109-3CN2109-3G-Scan 560*220 (mm)
22*9 (in)		214*97 (mm)
8*4 (in)		5.8/cm²
37.6/in²		4137 (kpa)
600 (psi)		1248下载
CN2109-5CN2109-5G-Scan 580*220 (mm)
23*9 (in)		210*94 (mm)
8*4 (in)		6.5/cm²
42.3/in²		3447 (kpa)
500 (psi)		1296下载
CN2517CN2517G-Scan 500*47.5 (mm)
20*2 (in)		17*25 (mm)
1*1 (in)		156.3/cm²
1040.6/in²		690 (kpa)
100 (psi)		651下载
CN2815CN2815G-Scan 400*314 (mm)
16*12 (in)		284*153 (mm)
11*6 (in)		5.2/cm²
33.4/in²		1725 (kpa)
250 (psi)		2288下载

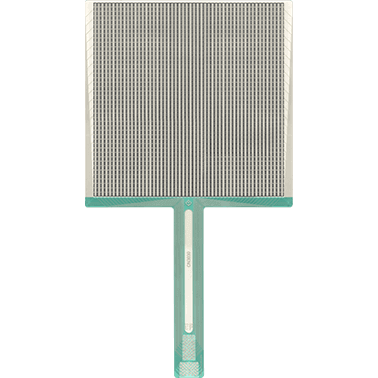

CN3030CN3030G-Scan 640*330 (mm)
25*13 (in)		300*307 (mm)
12*12 (in)		2.5/cm²
15.9/in²		69 (kpa)
10 (psi)		2288下载
CN3155-2QCN3155-2QG-Scan 800*650 (mm)
32*26(in)		640*550 (mm)
25*22 (in)		1.3/cm²
8.2/in²		345 (kpa)
50 (psi)		4576下载

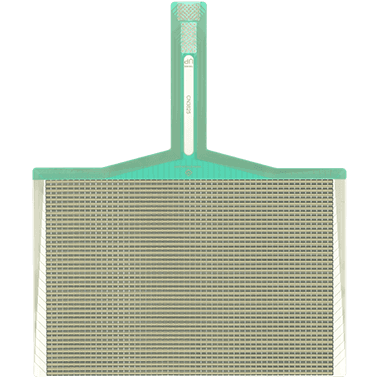

CN3825CN3825G-Scan 500*417 (mm)
20*16 (in)		381*257 (mm)
15*10 (in)		2.3/cm²
14.8/in²		345 (kpa)
50 (psi)		2288下载
CN4040CN4040G-Scan 580*432 (mm)
23*17 (in)		400*400 (mm)
16*16 (in)		1.4/cm²
9.2/in²		345 (kpa)
50 (psi)		2288下载
CN5018CN5018G-Scan 400*510 (mm)
16*20 (in)		500*180 (mm)
20*7 (in)		2.5/cm²
16.3/in²		3447 (kpa)
500 (psi)		2288下载
CN5320-YCN5320-YG-Scan 400*544 (mm)
16*21 (in)		534*202 (mm)
21*8 (in)		1/cm²
6.7/in²		345 (kpa)
50 (psi)		1144下载
CN5510CN5510G-Scan 560*400 (mm)
22*16 (in)		550*104 (mm)
22*4 (in)		3.9/cm²
25.5/in²		3447 (kpa)
500 (psi)		2288下载

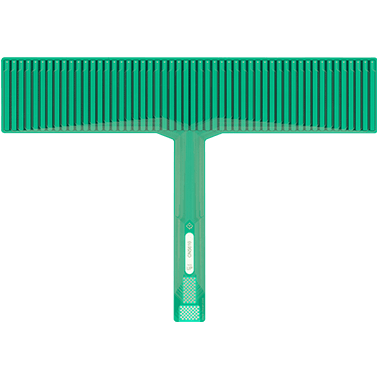

CN5610CN5610G-Scan 400*570 (mm)
16*22 (in)		560*104 (mm)
22*4 (in)		3/cm²
19.3/in²		3447 (kpa)
500 (psi)		1768下载

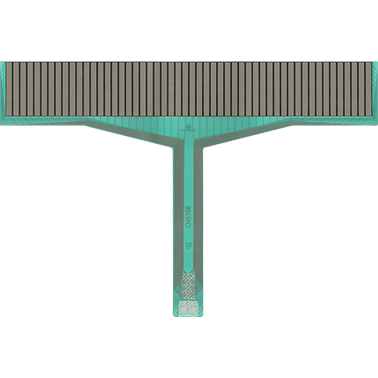

CN5708CN5708G-Scan 402*590 (mm)
16*23 (in)		570*84 (mm)
22*3(in)		2.9/cm²
18.4/in²		3447 (kpa)
500 (psi)		2288下载
CN6009CN6009G-Scan 202*614 (mm)
8*24 (in)		604*93 (mm)
24*4 (in)		4.1/cm²
26.1/in²		3447 (kpa)
500 (psi)		2288下载

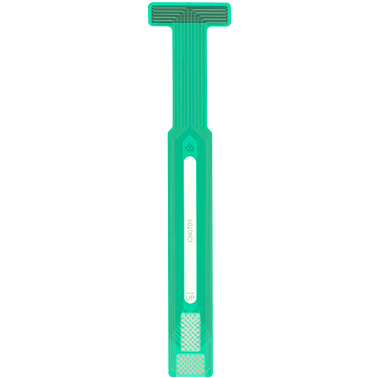

CN0701CN0701G-Scan 400*88 (mm)
16*4 (in)		78*16 (mm)
3*1 (in)		39.2/cm²
253/in²		3447 (kpa)
500 (psi)		520下载
CN0825-YCN0825-YG-Scan 750*164 (mm)
30*7 (in)		78*250 (mm)
3*10 (in)		1.8/cm²
11.5/in²		69 (kpa)
10 (psi)		1536下载
CN0918CN0918G-Scan 1200*99 (mm)
47*4 (in)		93*188 (mm)
4*7 (in)		12.8/cm²
83.3/in²		3447 (kpa)
500 (psi)		2288下载

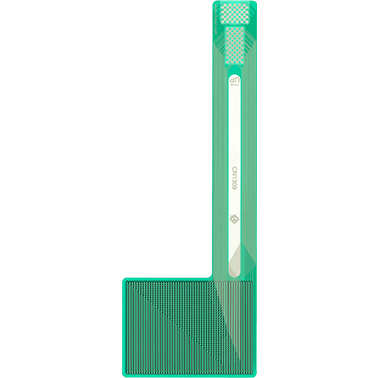

CN1309CN1309G-Scan 400*143 (mm)
16*6 (in)		133*97 (mm)
5*4 (in)		17.4/cm²
112.5/in²		3447 (kpa)
500 (psi)		2288下载
CN1310-1CN1310-1G-Scan 400*148 (mm)
16*6 (in)		138*105 (mm)
5*4 (in)		15.5/cm²
100.3/in²		2068 (kpa)
300 (psi)		2288下载
CN1509CN1509G-Scan 350*160 (mm)
14*6 (in)		148*88 (mm)
6*3 (in)		0.3/cm²
2/in²		3447 (kpa)
500 (psi)		40下载

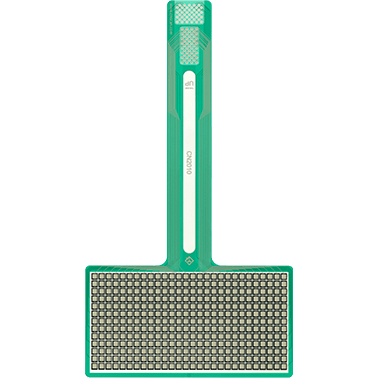

CN2010CN2010G-Scan 400*220 (mm)
16*9 (in)		205*101 (mm)
8*4 (in)		1.76/cm²
11.3/in²		69 (kpa)
10 (psi)		364下载
CN2409CN2409G-Scan 750*247 (mm)
30*10 (in)		241*97 (mm)
10*4 (in)		4.3/cm²
28/in²		3447 (kpa)
500 (psi)		1024下载
CN2909-1CN2909-1G-Scan 1000*300 (mm)
40*12 (in)		290*96 (mm)
11*4 (in)		8.1/cm²
51.8/in²		3447 (kpa)
500 (psi)		2288下载
CN3010CN3010G-Scan 400*314 (mm)
16*12 (in)		308*100 (mm)
12*4 (in)		7.3/cm²
46.8/in²		69 (kpa)
10 (psi)		2288下载
CN3825CN3825G-Scan 500*417 (mm)
20*16 (in)		381*257 (mm)
15*10 (in)		2.3/cm²
14.9/in²		345 (kpa)
50 (psi)		2288下载
CN5711CN5711G-Scan 580*599 (mm)
23*24 (in)		575*112 (mm)
23*4 (in)		3.5/cm²
22.7/in²		3447 (kpa)
500 (psi)		2288下载
CN5912CN5912G-Scan 500*609 (mm)
20*24 (in)		599*120 (mm)
24*5 (in)		3.1/cm²
20.3/in²		3447 (kpa)
500 (psi)		2288下载

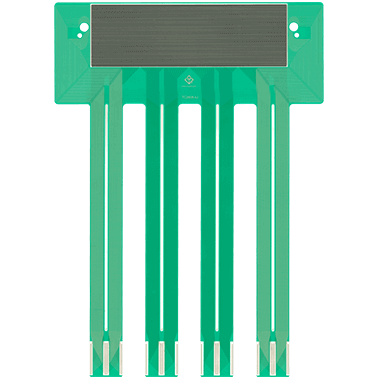

TC2608-4JTC2608-4JG-Scan 500*360 (mm)
20*14 (in)		260*80 (mm)
10*3 (in)		155.6/cm²
1000/in²		13790 (kpa)
2000 (psi)		32768下载

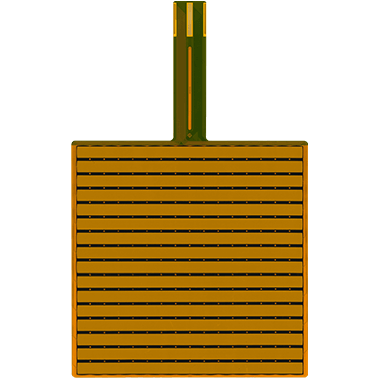

TC3030TC3030G-Scan 500*316 (mm)
20*12 (in)		300*300 (mm)
12*12 (in)		0.3/cm²
1.8/in²		1034 (kpa)
150 (psi)		256下载
TC4114-Y-4J-1TC4114-Y-4J-1G-Scan 800*425 (mm)
32*17 (in)		415*145 (mm)
16*6 (in)		41.8/cm²
272.3/in²		4137 (kpa)
600 (psi)		25312下载
TC6025TC6025G-Scan 420*1000 (mm)
17*40 (in)		600*250 (mm)
24*10 (in)		2.7/cm²
17.4/in²		2068 (kpa)
300 (psi)		4096下载
CN0310CN0310397*144 (mm)
15.6*5.7(in)		100*30 (mm)
3.94*1.18(in)		75.2/cm²
476.2/in²		1000 (kpa)
145 (psi)		2288下载

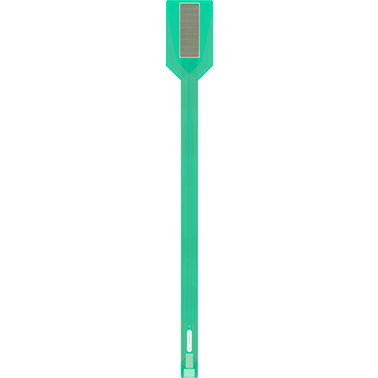

CN0515CN05151050*130 (mm)
41.3*5.11(in)		150*50(mm)
5.9*1.97(in)		28.7/cm²
181.8/in²		3447 (kpa)
500 (psi)		2288下载
CN0516CN0516471*105 (mm)
18.5*4.1(in)		160*55 (mm)
6.3*2.17(in)		24.8/cm²
166.7/in²		897 (kpa)
130 (psi)		2288下载

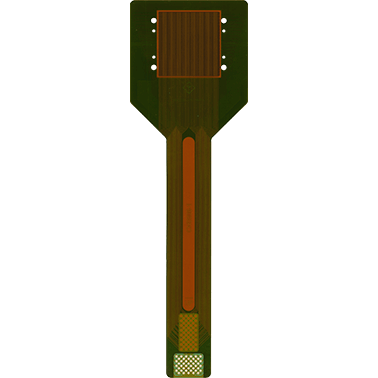

CN0606-1CN0606-1400*125 (mm)
15.7*4.9 (in)		67*63 (mm)
2.64*2.48 (in)		55.6/cm²
360.6/in²		2068 (kpa)
300 (psi)		2288下载

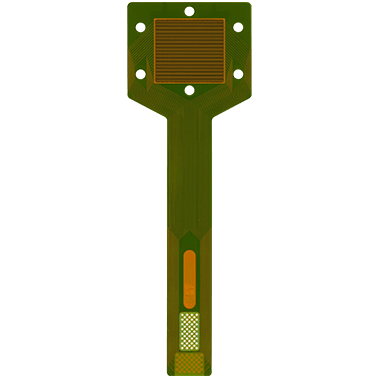

CN0607CN0607400*131 (mm)
15.7*5.2 (in)		70*65 (mm)
2.76*2.56 (in)		51.3/cm²
333.3/in²		1034 (kpa)
150 (psi)		2288下载

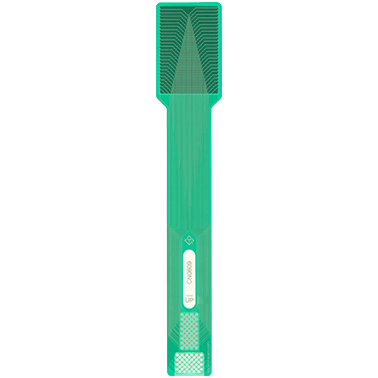

CN0609CN0609400*70 (mm)
15.7*2.8 (in)		92*60 (mm)
3.6*2.4 (in)		39.7/cm²
238.1/in²		3447 (kpa)
500 (psi)		2288下载

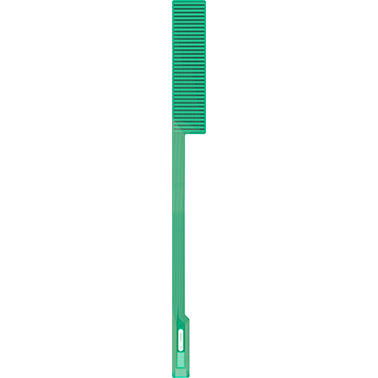

CN0852CN08521000*91 (mm)
39.4*3.6 (in)		519*82 (mm)
20.43*3.32 (in)		5.3/cm²
33.8/in²		3447 (kpa)
500 (psi)		2288下载

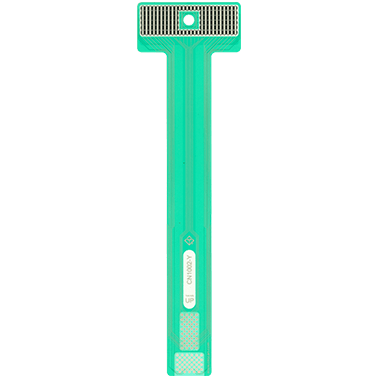

CN1002-YCN1002-Y400*110 (mm)
15.7*4.3 (in)		100*29 (mm)
3.94*1.14(in)		4.9/cm²
33.3/in²		689 (kpa)
100 (psi)		132下载

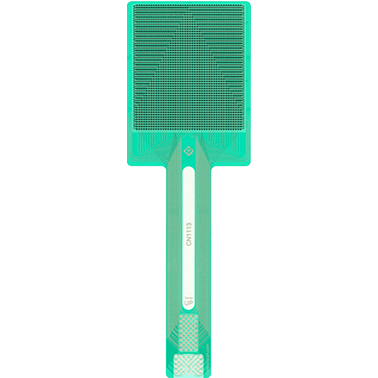

CN1113CN1113400*130 (mm)
15.75*5.12 (in)		110*130 (mm)
4.33*5.12 (in)		15.7/cm²
100/in²		3447 (kpa) 500 (psi)
6895 (kpa) 1000 (psi)		2288下载

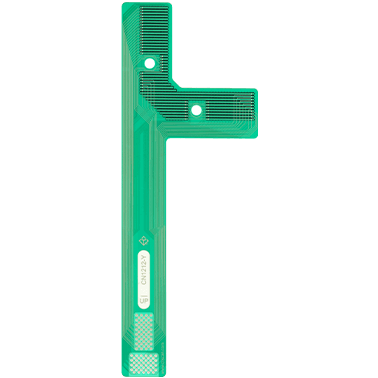

CN1212-YCN1212-Y400*145 (mm)
15.7*5.7 (in)		120*120 (mm)
4.72*4.72 (in)		11.1/cm²
69.4/in²		689 (kpa)100 (psi)577下载

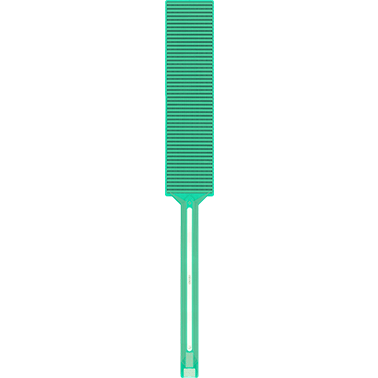

CN1251CN12511000*130 (mm)
39.4*5.1 (in)		120*510 (mm)
4.7*20.1 (in)		3.6/cm²
23.3/in²		3447 (kpa)
500 (psi)		2288下载

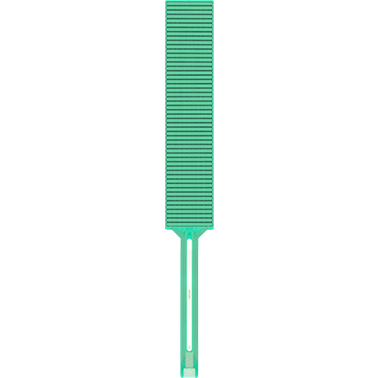

CN1259CN12591000*130 (mm)
39.4*5.1 (in)		120*599 (mm)
4.7*23.6 (in)		3.1/cm²
19.8/in²		3447 (kpa)
500 (psi)		2288下载

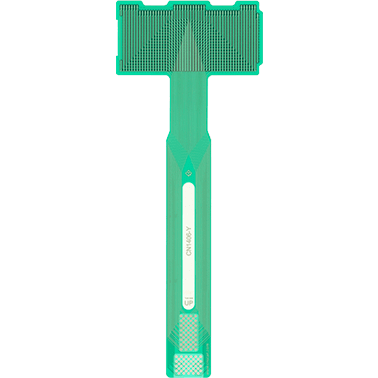

CN1406-YCN1406-Y400*155 (mm)
15.7*6.1 (in)		145*70 (mm)
5.7*2.76 (in)		11.9/cm²
75.8/in²		69 (kpa)
10 (psi)		1174下载
CN1409-1CN1409-1403*229 (mm)
15.9*9 (in)		148*96 (mm)
5.83*3.78(in)		15.7/cm²
101/in²		138 (kpa) 20 (psi)
483 (kpa) 70 (psi)		2288下载
CN1409-2CN1409-2412*229 (mm)
16.2*9 (in)		148*94 (mm)
5.83*3.7 (in)		15.7/cm²
101/in²		138 (kpa)
20 (psi)		2288下载
CN1510CN1510426*200 (mm)
16.8*7.9 (in)		158*105 (mm)
6.22*4.1 (in)		13.4/cm²
92.6/in²		600(kpa) 87(psi)
248(kpa) 36(psi)		2288下载
CN1514CN1514520*311 (mm)
20.5*12.2 (in)		157*145 (mm)
6.18*5.71 (in)		10.1/cm²
64.1/in²		345 (kpa)
50 (psi)		2288下载

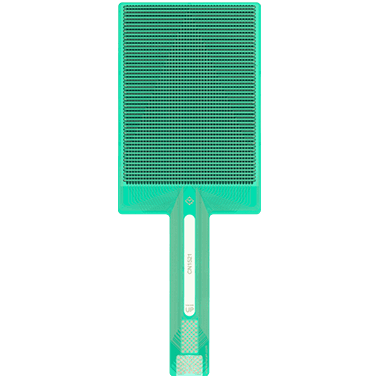

CN1521CN1521450*170 (mm)
17.7*6.7 (in)		150*210 (mm)
5.91*8.27 (in)		7.4/cm²
48.1/in²		3447 (kpa) 500 (psi)
6895 (kpa) 1000 (psi)		2288下载
CN1605CN1605376*200 (mm)
14.8*7.9 (in)		160*55 (mm)
6.3*2.17 (in)		24.8/cm²
166.7/in²		896 (kpa) 130 (psi)
138 (kpa) 20 (psi)		2288下载
CN1607CN1607380*228 (mm)
15*9(in)		160*76 (mm)
6.3*3(in)		17.9/cm²
119/in²		345 (kpa)
50 (psi)		2288下载
CN1607-1CN1607-1420*227 (mm)
16.5*8.9(in)		163*77 (mm)
6.4*3.1(in)		17.3/cm²
109.9/in²		248 (kpa)
36 (psi)		2288下载
CN1607-2CN1607-2409*242 (mm)
16.1*9.5 (in)		160*79 (mm)
6.3*3.1 (in)		17.9/cm²
119/in²		248 (kpa)
36 (psi)		2288下载
CN1708CN1708434*315 (mm)
15*9 (in)		170*80 (mm)
6.3*3 (in)		16.8/cm²
119/in²		462 (kpa)
67 (psi)		2288下载

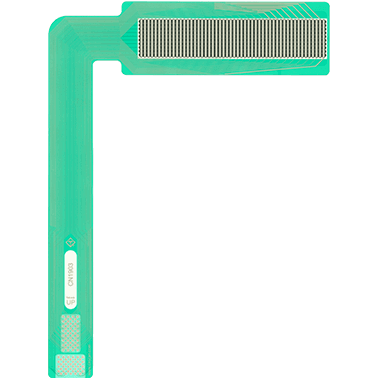

CN1903CN1903400*300 (mm)
15.7*11.8 (in)		197*38 (mm)
7.76*1.5 (in)		6.7/cm²
44.4/in²		6895 (kpa)
1000 (psi)		520下载

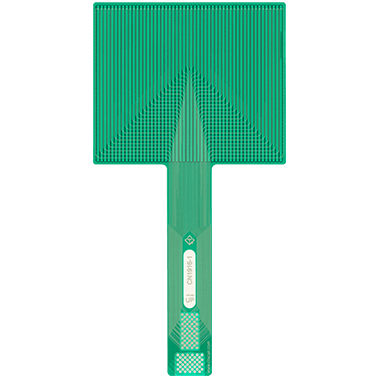

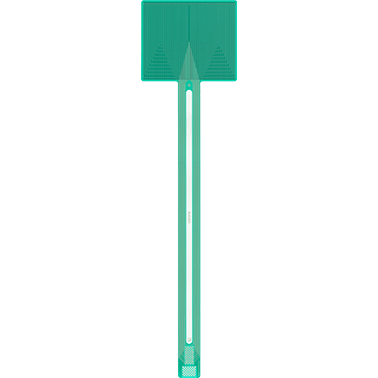

CN1916CN1916800*204 (mm)
31.5*8 (in)		194*164 (mm)
7.64*6.46 (in)		6.9/cm²
44.4/in²		3447 (kpa)
500 (psi)		2288下载

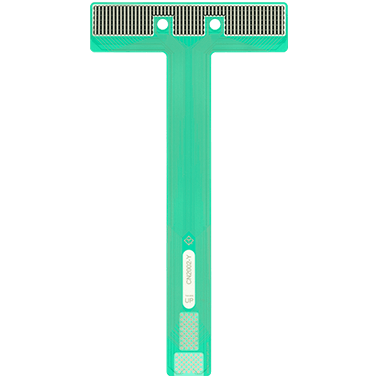

CN2002-YCN2002-Y400*210 (mm)
15.7*8.3 (in)		200*29 (mm)
7.87*1.14 (in)		4.9/cm²
33.3/in²		689 (kpa)
100 (psi)		264下载

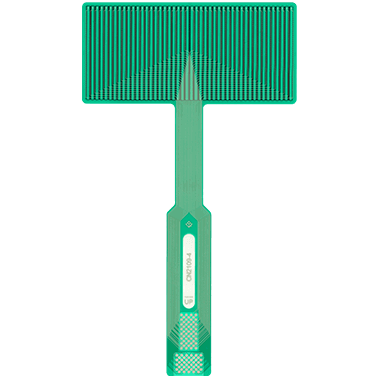

CN2109-4CN2109-4400*227 (mm)
15.7*8.9 (in)		217*99 (mm)
8.54*3.9(in)		9.1/cm²
58.5/in²		3447 (kpa)
500 (psi)		2024下载

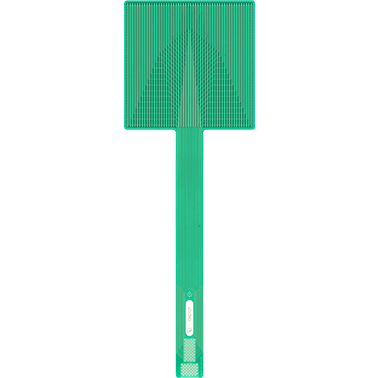

CN2121CN2121650*225 (mm)
25.6*8.9 (in)		215*215 (mm)
8.46*8.46(in)		4.9/cm²
31/in²		3447 (kpa)
500 (psi)		2288下载
CN2143-YCN2143-Y998*283 (mm)
39.3*11.1 (in)		(1.5²*Π)*20 (cm²)
(0.06²*Π)*20 (in²)		13790 (kpa)
2000 (psi)		20下载
CN2910CN2910383*310 (mm)
15.1*12.2 (in)		300*103 (mm)
11.8*4.1 (in)		7.3/cm²
47.2/in²		3447 (kpa)
500 (psi)		2288下载

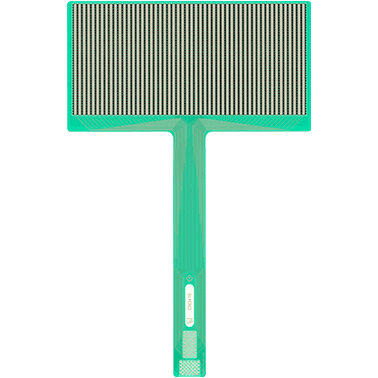

CN3416CN3416550*360 (mm)
21.7*14.2 (in)		340*160 (mm)
13.39*6.3(in)		4.1/cm²
25.6/in²		3447 (kpa)
500 (psi)		2288下载

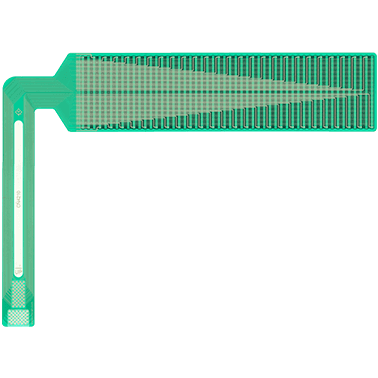

CN4210CN4210400*550 (mm)
15.7*21.7 (in)		429*105 (mm)
16.89*4.13 (in)		5/cm²
33.7/in²		3447 (kpa)
500 (psi)		2288下载

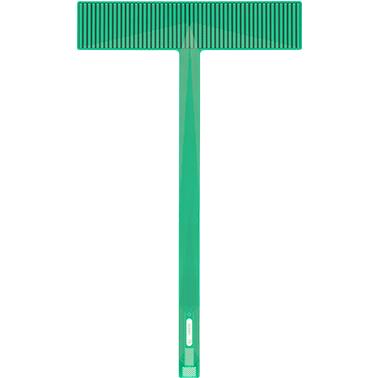

CN5010CN5010850*510 (mm)
33.5*20.1 (in)		500*100 (mm)
19.7*3.9 (in)		4.5/cm²
29.2/in²		3447 (kpa)
500 (psi)		2288下载
CN5051CN5051234*87 (mm)
9.2*3.4 (in)		57*57 (mm)
2.2*2.2 (in)		59.2/cm²
400/in²		69 (kpa) 10 (psi)
345 (kpa) 50 (psi)
1034 (kpa) 150 (psi)
1724 (kpa) 250 (psi)		1936下载
CN5563CN55631000*568 (mm)
39.4*22.4 (in)		558*633 (mm)
21.97*24.92 (in)		0.6/cm²
4.2/in²		3447 (kpa)
500 (psi)		2288下载

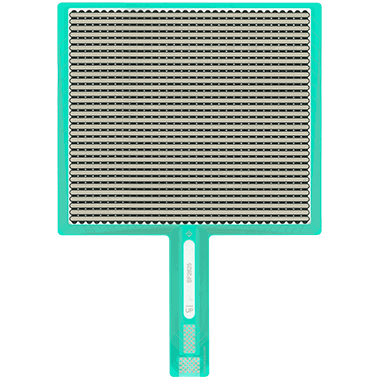

SF2825SF2825450*316 (mm)
17.7*12.4 (in)		281*250 (mm)
11.06*9.84 (in)		1.4/cm²
9.2/in²		69 (kpa)
10 (psi)		1024下载

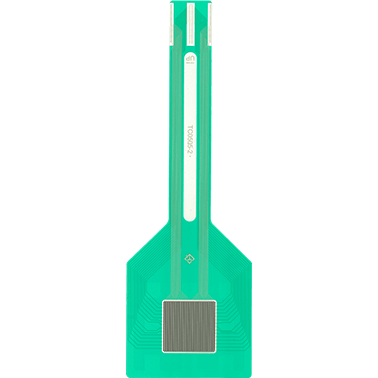

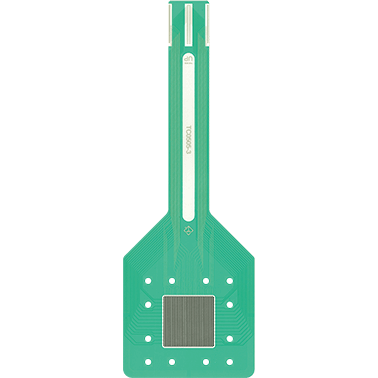

TC0505TC0505300*71 (mm)
11.8*2.8 (in)		51*51 (mm)
2*2 (in)		156.3/cm²
1040.6/in²		3447 (kpa)
500 (psi)		4096下载
TC1111TC1111342*157 (mm)
13.5*6.2 (in)		111*111 (mm)
4.4*4.4 (in)		32.7/cm²
204.1/in²		3447 (kpa)
500 (psi)		4096下载

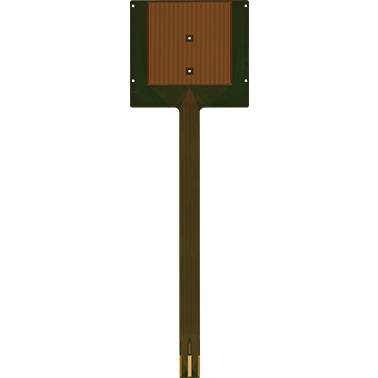

TC1717-YTC1717-Y800*252 (mm)
31.5*9.9 (in)		172*172 (mm)
6.77*6.77 (in)		13.7/cm²
82.6/in²		2068 (kpa)
300 (psi)		4024下载
TC4416-4JTC4416-4J1000*451 (mm)
39.4*17.8 (in)		445*166 (mm)
17.52*6.54 (in)		84/cm²
533/in²		3447 (kpa)
500 (psi)		65536下载

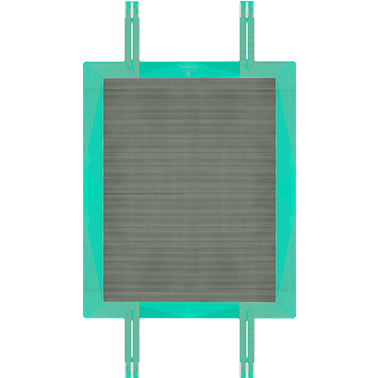

TC5065-4JTC5065-4J1100*620 (mm)
43.3*24.4 (in)		650*500 (mm)
25.59*19.69 (in)		20/cm²
125/in²		3447 (kpa)
500 (psi)		65536下载

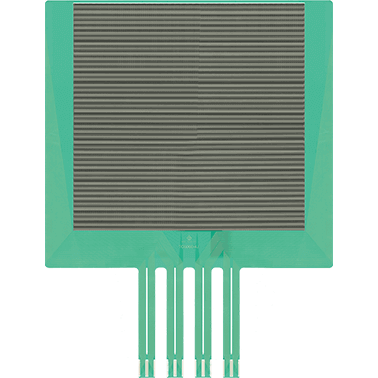

TC6060-4J-1TC6060-4J-11000*750 (mm)
39.4*29.5 (in)		600*600 (mm)
23.6*23.6 (in)		18.1/cm²
123.5/in²		3447 (kpa)
500 (psi)		65536下载
TiFS-5172TiFS-51721100*700 (mm)
43.3*27.6 (in)		512*720 (mm)
20.2*28.3 (in)		12.8/cm²
82.6/in²		3447 (kpa)
500 (psi)		46592下载
